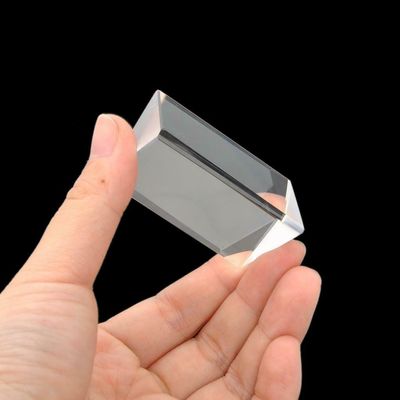

15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch

15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch
15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch

Large Image :  15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch

Product Details:
Place of Origin: Shanghai, China
Brand Name: advance
Model Number: 005
Payment & Shipping Terms:
Minimum Order Quantity: 10 Pieces
Price: $100.00/Pieces 10-99 Pieces
Packaging Details: Vacuum+EVA+Carton
Supply Ability: 10000000 Piece/Pieces per Month
Contact Now

15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch

Description
Warranty: - Customized Support: OEM, ODM
Material: BK7 And Other Optical Glass, BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc Surface Quality: 60/40
Dimension Tolerance: +/-0.01mm Angle Tolerance: 3"~2'
Flatness: N=1~3 Length: 3-100mm
Width: 3-100mm Height: 3-100mm
Length Tolerance: +/-0.01mm Width Tolerance: +/-0.01mm
Angle Tolerance: 3"-2' Surface Quality: 10/5~60/40
Application Area: Imaging,Lighting,Laser Etc Coating: Upon Request
Port: Shanghai
High Light:

Optical Triangular Glass Prism

,

Microfiber Pouch Triangular Glass Prism

,

6inch Triangular Optical Prism Lens

15cm 6inch Optical Glass Triple Triangle Prism With Gift Box And Microfiber Pouch


Thermal/Mechanical Properties

  1. Density (at 20 °C/68 °F): 2.51 g/cm 3
  2. Thermal Coefficient of Expansion (20/300 °C): 7.0 x 10-6/°C
  3. Strain Point:°C/ °F
  4. Annealing Point:°C/ °F
  5. Softening Point:°C/ °F

Optical Properties

  • Refractive Index(l=582.1nm): 1.509
  • Optical transmission



Chemical Properties

  • Hydrolytic resistance: class 2
  • Acid resistance: class 1
  • Alkali resistance: class 2

Specification
Materials BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc
Length 3~100mm
Width 3~100mm
Height 3~100mm
Length tolerance +/-0.01mm
Width tolerance +/-0.01mm
Height tolerance +/-0.01mm
Angle tolerance 3"~2'
Irregularity ΔN=0.1~0.5
Surface accuracy N=1~3
Surface quality 10/5~60/40
Coating Upon request
Application area Imaging,Lighting,Laser etc



Specification of fingerprint prism:



Our company can customize all-metal mirrors in different diameter specifications according to customers’ different requirements and also provides special all-mental mirrors such as punching, trimming, etc.



Feature of fingerprint prism:

  • Right-angle prism uses critical angle characteristic. Efficient internal total reflection of incident light is one of the basic functions of right-angle prism.
  • It is often coated with some optical films
  • Right-angle prism itself has larger contact area and such typical angles as 45° and 90°, so it is easy to install and has better stability and strength in mechanical stress compared with the ordinary mirrors
  • Right-angle prism is the best choice for optical elements used in all kinds of equipments and instruments
15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch 0


15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch 2
15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch 4

15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch 7
15cm 6inch Optical Triangular Glass Prism With Gift Box Microfiber Pouch 9

1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 4

Recommend Products
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 5
Company Profile
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 6


Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.



Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;
Certifications
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 7
Exhibition
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 8
Packing & Delivery
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 9
1.5mm To 300mm Optical Lens Design , BK7 Dichroic Optical Filter 10

FAQ
Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.
Q: What's your MOQ?
A: 10pcs.
Q: What's your leadtime?
A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
