Product Details:
|
| Warranty: | - | Customized Support: | OEM, ODM |
|---|---|---|---|
| Material: | BK7 And Other Optical Glass, BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc | Surface Quality: | 60/40 |
| Dimension Tolerance: | +/-0.01mm | Angle Tolerance: | 3"~2' |
| Flatness: | N=1~3 | Length: | 3-100mm |
| Width: | 3-100mm | Height: | 3-100mm |
| Length Tolerance: | +/-0.01mm | Width Tolerance: | +/-0.01mm |
| Angle Tolerance: | 3"-2' | Surface Quality: | 10/5~60/40 |
| Application Area: | Imaging,Lighting,Laser Etc | Coating: | Upon Request |
| Port: | Shanghai | ||

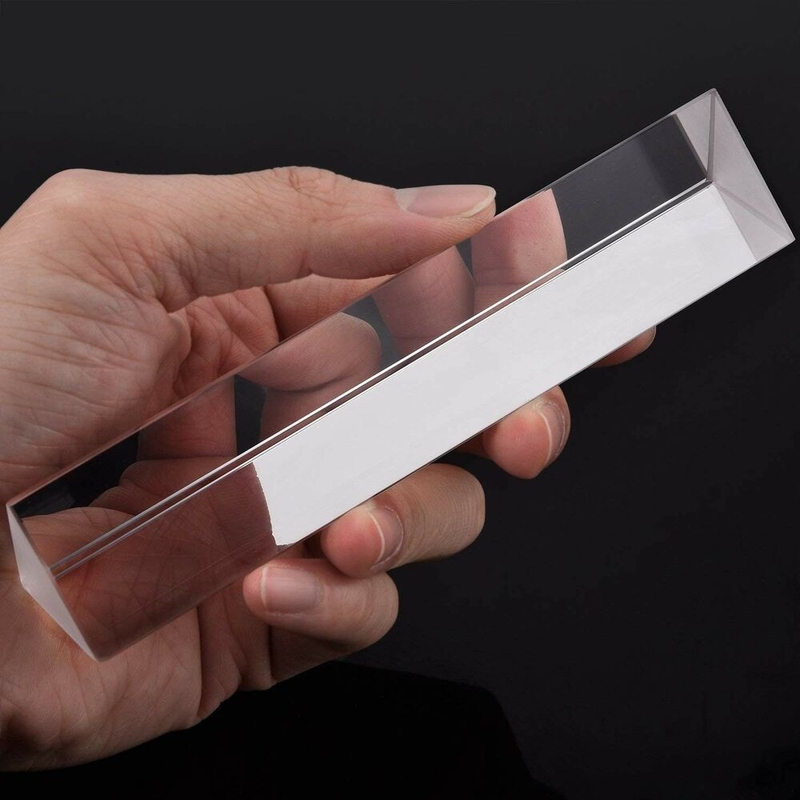

| High Light: | Right Angle Prism 25*25mm,Optical Right Angle Prism,Imaging Optical Prism Lens |
||
The high material quality is a primary technical reason why N-BK7 glass is often the number one choice for optical windows, lenses, and prisms. The smooth transmission, as well as a low absorption in the entire visible wavelength range, are a crucial feature for a large number of optical applications.
Unpolished N-BK7 raw materials are available with a maximum length of about 350 mm and a thickness of around 70 mm. BK7 glass blanksLarger glass dimensions are often possible on request. N-BK7 belongs to the optical block glasses and does not come in the form of smooth glass sheets. Hence, sawing, grinding, polishing, and shaping are always necessary production steps to produce optics from BK7. Due to stable chemical properties and high stain resistance, special treatment of the glass blanks is unnecessary before grinding and polishing.
| Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
| Length | 3~100mm |
| Width | 3~100mm |
| Height | 3~100mm |
| Length tolerance | +/-0.01mm |
| Width tolerance | +/-0.01mm |
| Height tolerance | +/-0.01mm |
| Angle tolerance | 3"~2' |
| Irregularity | ΔN=0.1~0.5 |
| Surface accuracy | N=1~3 |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
