Product Details:
|
| Warranty: | -, 16 Month | Customized Support: | OEM, ODM |
|---|---|---|---|
| Usage: | Optical, Optical System | Structure: | Custom |
| Shape: | Custom | Product Name: | Lighting Accessories Standard Reflector Bowens Mount |
| Model: | I50 | Application: | Optical Shops |
| Certificate: | CE ISO | Type: | Ophthalmic Optical Equipments |
| Weight: | Light | Material: | Aluminum Alloy |
| Port: | Shanghai | ||
| High Light: | Orthodontic reflecting telescope concave mirror,Dental reflecting telescope concave mirror,Optical dental reflector |
||

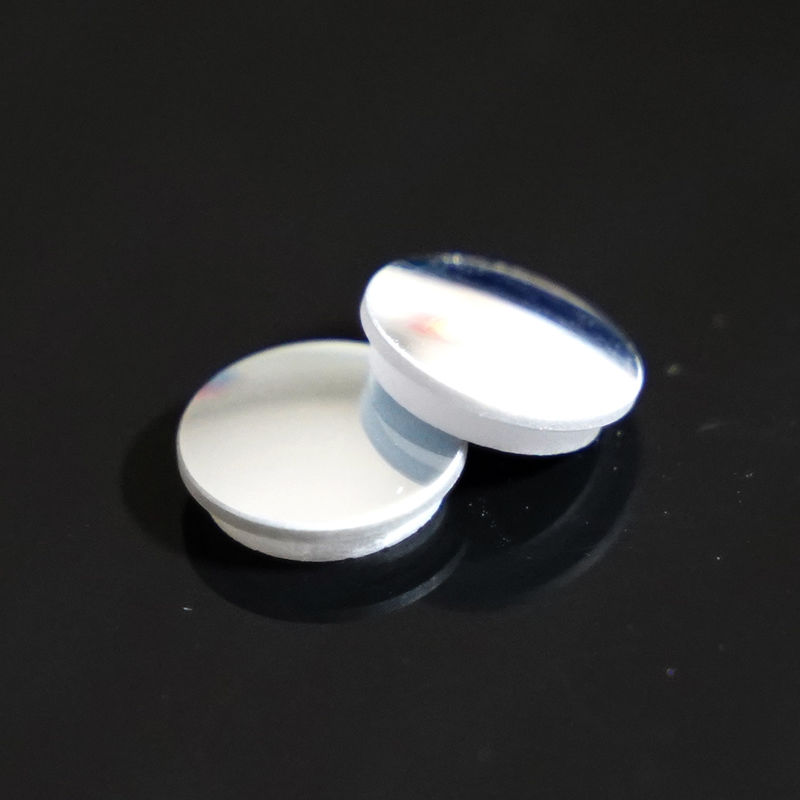

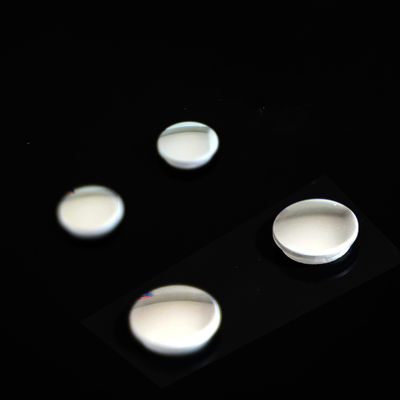

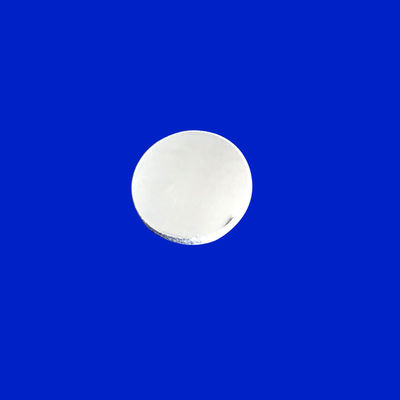

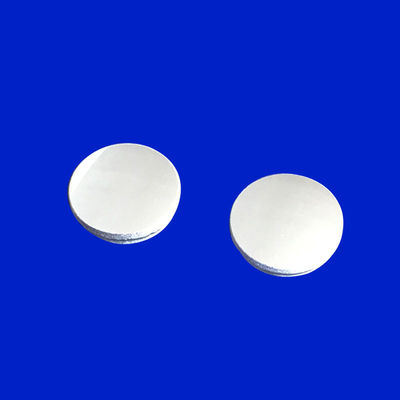

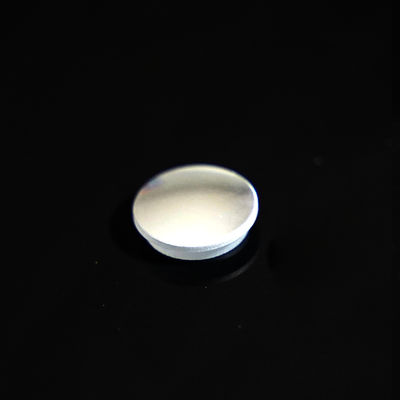

Optical mirror reflector price front surface dental orthodontic reflector telescope mirror
Specification
| Product Name | reflective mirror | Material | Optical glass |
| diameter | 203mm | focal length | 750mm |
| Thickness Tolerance | ±0.05mm | shape | Spherical |
| Surface Quality | 40/20 | Coating | aluminum |
| Edge thickness | 18mm | Net weight | 1.47kg |
| Materials | BK7 or others optical glass. quartz. sapphire . Ge. Si- ZnSe· CaF2 etc. |
| Diameter | 1.5~300mm |
| Radius | R 0.8mm-∞ |
| Focal length | -30000mm~+ 30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1～0.5 |
| Decenter | 3"~1' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging. Lighting Laser etc |
