Clear K9 60/40 6mm 80mm Crystal Lens Ball 0.7mm To 400mm

Name: Clear K9 60/40 6mm 80mm Crystal Lens Ball 0.7mm To 400mm
Brand: Advance
SKU: OEM/ODM
Price: 50.00 USD
Availability: InStock
Rating: 4.5 (197 reviews)

All Products

Optical Glass Lens
(70)

Optical Glass Filters
(34)

Optical Glass Prism
(18)

Cylindrical Mirrors
(24)

Rod Lens
(5)

Optical Ball Lens
(10)

Reflector Mirrors
(10)

Optical Camera Lenses
(17)

Optoelectronic Modules
(1)

Aspherical Optical Lens
(14)

Glass Optical Components
(12)

Camera Lens Components
(1)

Optical Lens Design
(10)

Best Products

Clear K9 60/40 6mm 80mm Crystal Lens Ball 0.7mm To 400mm

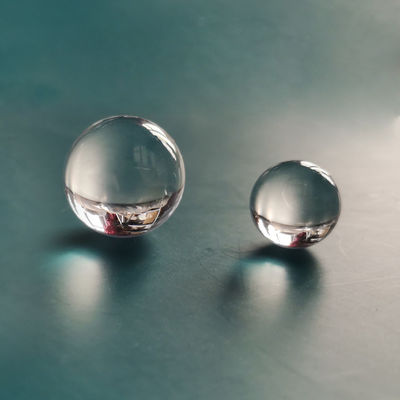

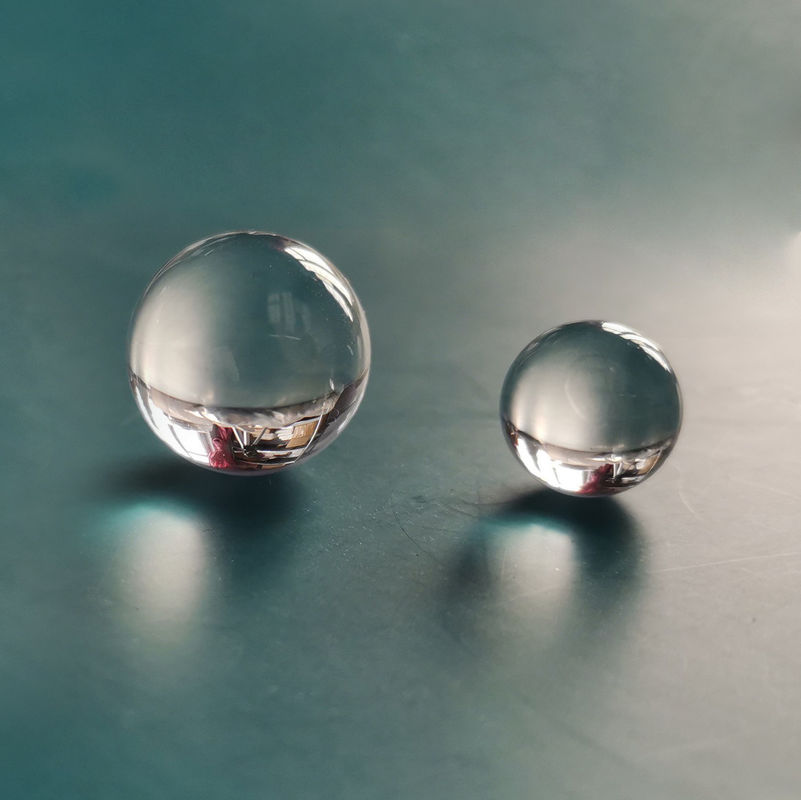

Large Image : Clear K9 60/40 6mm 80mm Crystal Lens Ball 0.7mm To 400mm

Product Details:

Place of Origin:	Shanghai, China
Brand Name:	Advance
Model Number:	OEM/ODM

Payment & Shipping Terms:

Minimum Order Quantity:	10 Pieces
Price:	$50.00/Pieces 10-99 Pieces
Packaging Details:	Vacuum+EVA+Carton
Supply Ability:	100000 Piece/Pieces per Month

Contact Now

Clear K9 60/40 6mm 80mm Crystal Lens Ball 0.7mm To 400mm

Description

Warranty:	-	Customized Support:	OEM, ODM
Usage:	Optical	Structure:	Double Concave
Shape:	Aspheric	Product Name:	10mm Half Ball Lens For Optical Communication System
Material:	N-BK7	Application:	Optical Equipment
Diameter:	Custom's Requirements	Name:	Optical Collimator Lens
Coating:	Customer Request	Type:	Optical Lens
Description:	Waterproof Lens	Surface Quality:	60/40
Color:	Transparent Clear	Port:	Shanghai
High Light:	80mm crystal lens ball , 60/40 6mm crystal lens ball , 60/40 K9 clear ball photography

Custom Crystal k9 High Quality Clear 6mm 80mm Optical Glass Half Ball Lens

Specification

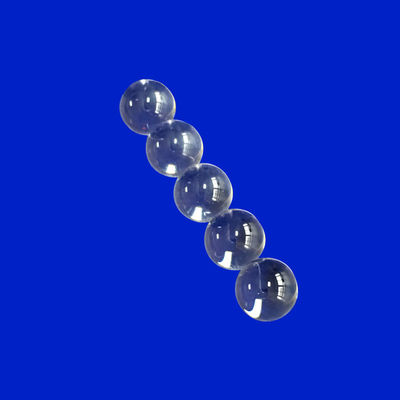

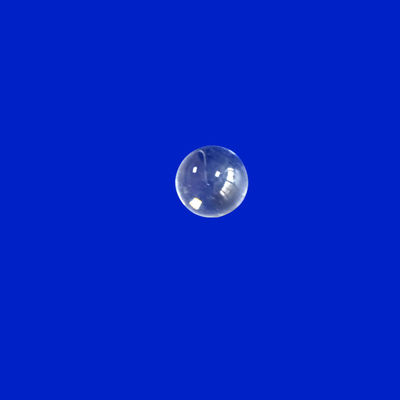

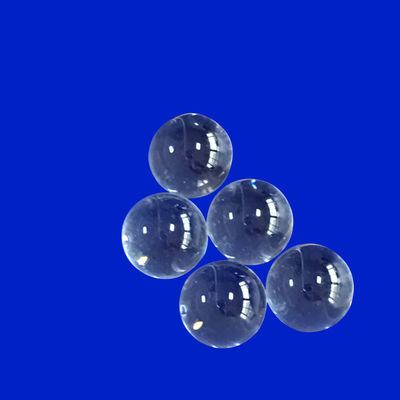

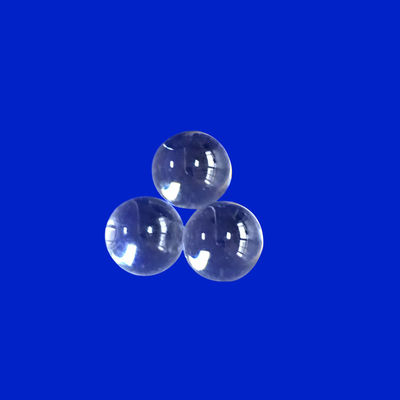

Ball lens

Spherical Ball Lenses are commonly used for laser Collimating and focusing, laser-to-fiber coupling, fiber-to-fiber coupling, and fiber-to-detector coupling.Larger spheres are easier to handle and ease the sensitivity of translational alignment. However, smaller spheres has the benefit of fitting into smaller packages.Ball lenses are highly polished spheres made of optically transparent homogeneous materials.Carefully controlled manufacturing process produces spheres with precise diameters and unsurpassed Surface quaWe supply optical spherical ball lens,Half-ball (hemispherical) lenses are ideal for applications such as fiber communication, endoscopy, micros copy, optical pick-up devices, and laser measurement systems.

At the light exit of the LED lamp bead, focusing the light, reduce the divergence angle light, Protect the chip, improve the air-tightness of the lamp bead. Can be used for organic packaging and inorganic packaging. Costomized in all shapes and size.

Range of diameter	Dia.0.7mm-Dia.400mm
Range of curve radius	R1.5-R∞ etc.
Tolerance of diameter	+/-0.1,+/-0.01,+/-0.005 etc.
Surface accuracy	λ,1/2λ,1/4λ,1/10λ etc.
Tolerance of Thickness	+/-0.1,+/-0.05,+/-0.01 etc.
Centration	+/-2',+/-1' etc
Aperture N	5,1 etc.
Irregularity ΔN	2,1,0.5,0.2 etc.
Surface quality	60/40.40/20,20/10,10/5 etc

Recommend Products

Company Profile

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.

Company Advantages:

1. Have comprehensive design, production and sales capabilities, and provide customers with one-stop convenient procurement services; 2. It has tens of thousands of optical molds and samples, which can provide customers with fast proofing services with low cost; 3. Be able to participate in the customer's new product research and development early, provide feasible plans and suggestions, and make the project less detours;

Certifications

Exhibition

Packing & Delivery

FAQ

Q: What are your main products or Which fiefd do your products be used?
A: We are specialized in optical design.optical element processing,Lenses assembly,Such as Spherical lens,Aspherical
lens,Cylindarlens,Reflector mirror,Filter,Rod lens,Camera lenses etc,and our products are wide used to these filed such as
imaging,Laser,Lighting etc.

Q: What's your advantage?
1. We have about ten thousands optical modules and fixturesin stock,and employ several outstanding technicians and manager.that
will enable to provide customer excellent quality in shortleadtime,also can save the plenty of develop cost for customer.
2. We can help customer to optimize the optical system whichthey dislike,and provide the free optical solution or suggestion.

Q: What's your MOQ?
A: 10pcs.

Q: What's your leadtime?

A: 1day for inventory and 25~35days for the new project.

Q: What's your shipping type?
A: Usually by Fedex,DHL,TNT,EMS etc or Customer appointed.

Q: What's the payment condition?
A: T/T,L/C,VISA,Paypal,Alipay or Negotiation.

Q: What's your quality guarantee period?
A: Three years.
