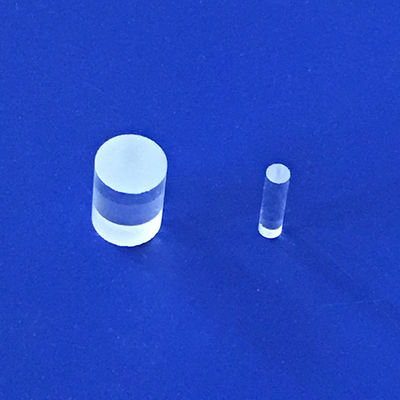

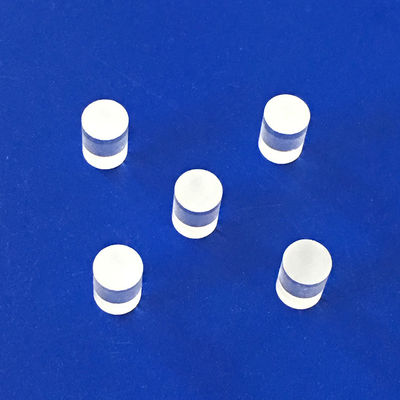

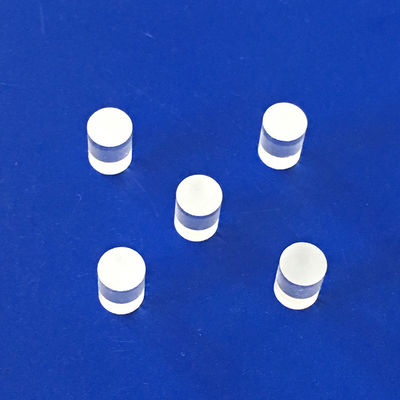

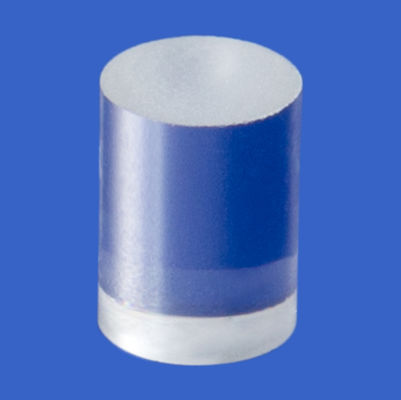

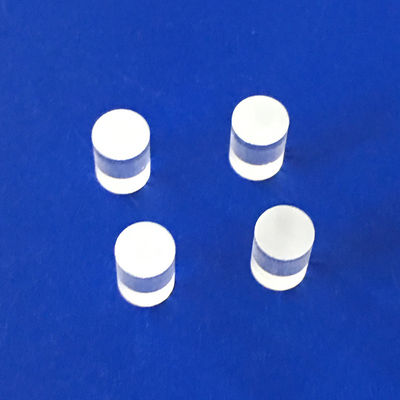

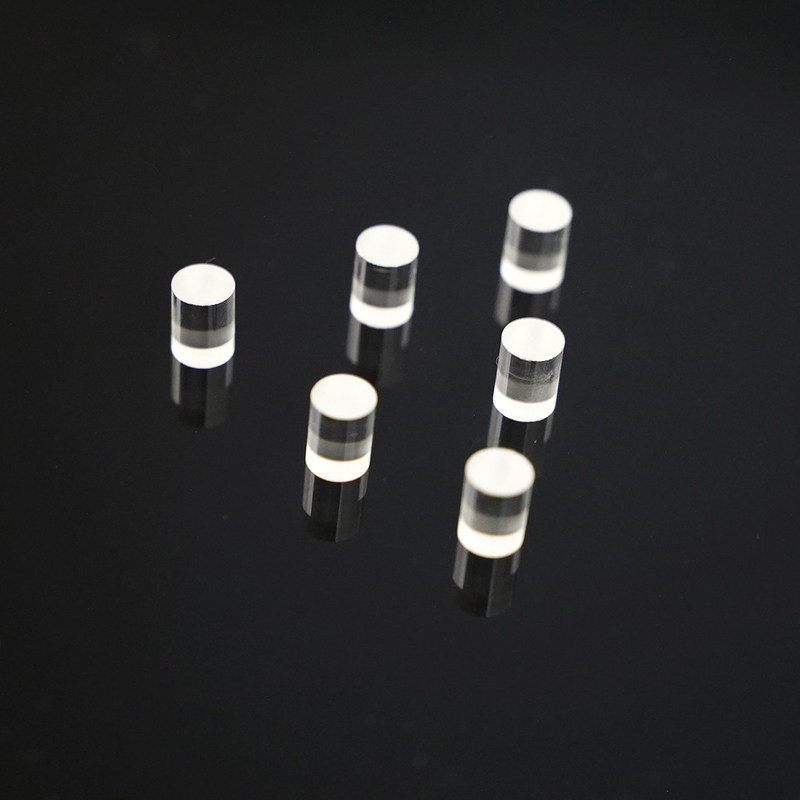

10/5 To 60/40 Sapphire Rod Lens 1mm To 50mm Endoscope

Optical JGS1 fused silica quartz glass rod optics endoscope lens.



1-Thinner and Stronger than Standard Glass Windows

2-Transmits Wavelengths Ranging From UV to Mid-Infrared

3-Features Extreme Surface Hardness and Chemical Resistance Sapphire Windows are manufactured from single crystal sapphire, making them ideal for demanding applications (such as laser systems) because of their extreme surface hardness, high thermal conductivity, high dielectric constant and resistance to common chemical acids and alkalis. Sapphire is the second hardest crystal next to diamonds and, because of their structural strength, sapphire windows can be made much thinner than other common dielectric windows with improved transmittance. Chemically, sapphire is single crystal aluminum oxide (Al2O3), and is useful in a transmission range from 0.2 - 5.5µm.



Material	BK7, Quartz, Infrared, Sapphire
Diameter	0.5-50mm
Length	0.5-120mm
Diameter Tolerance	±0.005mm
Length Tolerance	±0.005mm
Irregularity	Change In N=0.1-0.5
Surface quality	10/5-60/40
Coating	Upon request
Application Area	Imaging,Lighting,Laser etc

Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc.
