Product Details:
|
| Lenses Material: | Glass | Vision Effect: | Lenticular |
|---|---|---|---|
| Coating: | HMC, Upon Request | Lenses Color: | Clear |
| Material: | BK7 And Other Optical Glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 Etc | Diameter Tolerance: | +/-0.005mm |
| Surface Accuracy: | N=1~0.5 | Centerthickness Tolerance: | +/-0.001mm |
| Focal Length Tolerance: | +/-1% | Surface Quality: | 10/5~60/40 |
| High Light: | 250mm plano convex lens,114mm plano convex lens,CaF2 convex glass lens |
||

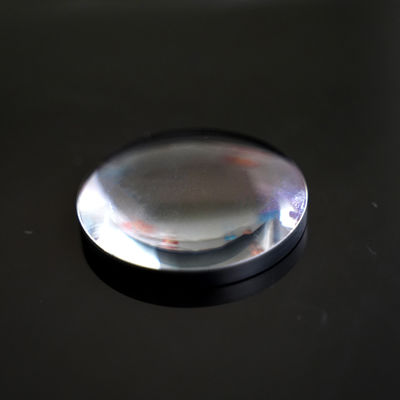

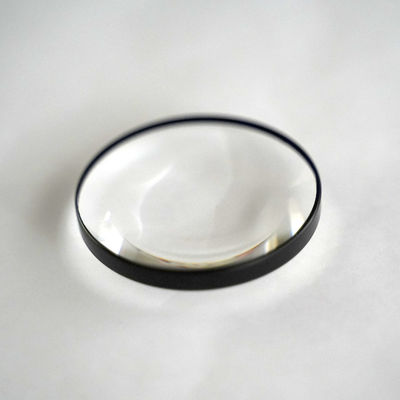

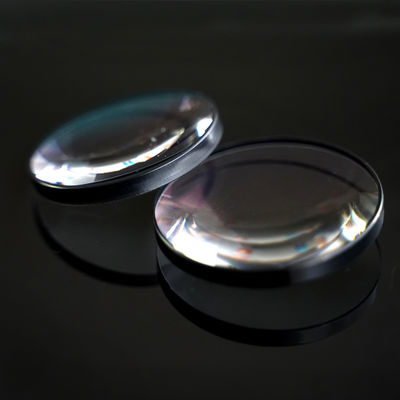

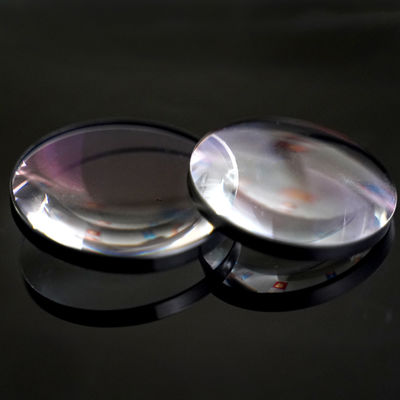

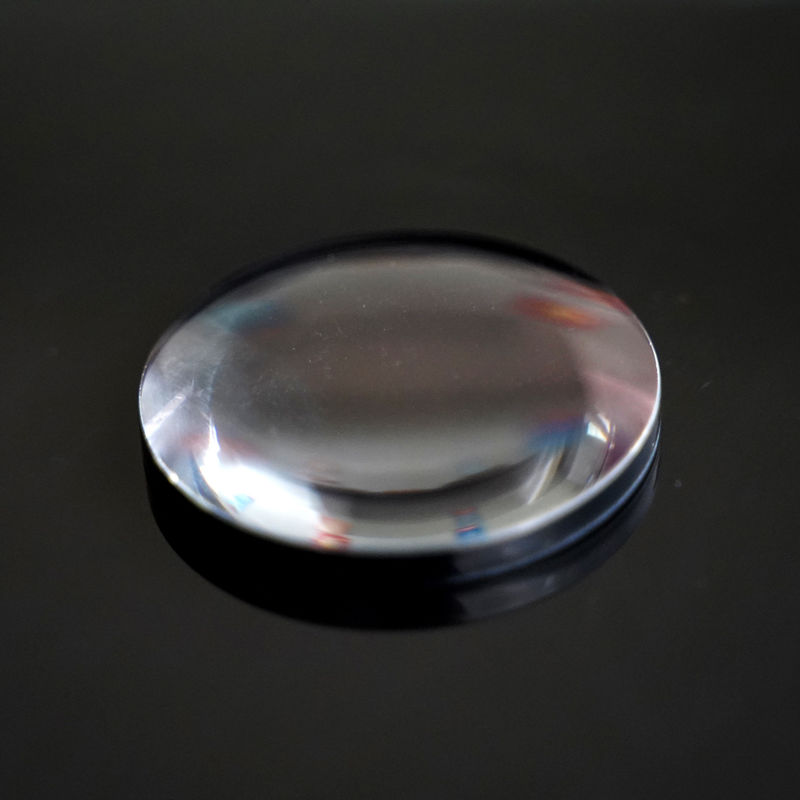

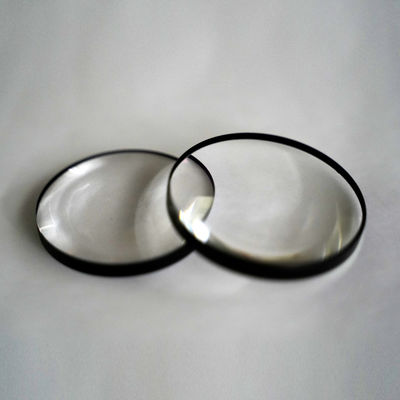

Wholesale Optical glass plano convex lens/flat convex glass lens
Condenser lenses are used for concentrating light into a beam. Condenser lenses are typically used in enlargers, projectors and illumination lighting systems. This range of large condenser lenses have been optically polished and of high quality at very reasonable prices.
Our stock range of high quality planoconvex condenser lenses are available direct from this page with focal lengths between 250mm to 500mm and diameters between 114mm and 250mm.
| Materials | BK7 or other optical glass,quartz,sapphire,Ge,Si,ZnSe,CaF2 etc |
| Diameter | 1.5~300mm |
| Radius | R0.8mm-∞ |
| Focal length | -30000mm~+30000mm |
| Center thickness tolerance | +/-0.01mm |
| Diameter tolerance | +/-0.005mm |
| Focal length tolerance | +/-1% |
| Surface accuracy | N=1~3 |
| Irregularity | ΔN=0.1~0.5 |
| Decenter | 3''~1'' |
| Surface quality | 10/5~60/40 |
| Coating | Upon request |
| Application area | Imaging,Lighting,Laser etc |
Shanghai Advance Optical-Electronics Technology Co., Ltd. is a technology-based production enterprise,officially established in September 2009,the plant site located in Qingpu Industrial Park, Shanghai, only half an hour's drive from Shanghai Hongqiao International Airport. The company gathers several excellent technicans in optical industry, has comprehensive supporting capabilities such as optical mechanical and electrical design, processing and sales services, and wholeheartedly provides each customer with high-quality and convenient products and services. Business scope: optical mechanical and electrical module development, precision optical element processing, camera lens design and processing, optical design and optical path optimization solution, technical consultation and after-sales service. Application fields: machine vision, artificial intelligence, biomedical, smart city, high-end monitoring, testing instruments, military equipment, laser etching, special lighting, scientific research institutions, etc. Company Advantages:
